Multiple machine Kubernetes

In the HA Kubernetes and Large scale Kubernetes examples, we showed a single Kubernetes cluster running on a single Slicer host.

In this example, we'll show you spread Kubernetes clusters over multiple machines, each running Slicer.

  1. You want a multi-arch Kubernetes cluster - with Slicer on an x86_64 and Arm64 machine
  2. You want a much larger cluster than you can fit on any single machine

The basic idea is that you run Slicer on two or more machines, which manages its own set of VMs. These are put on distinct subnets to avoid IP address conflicts, then a rule is added to the routing table to enable inter-connectivity. This isn't limited to just Kubernetes, you could run any network-based product or service you like across multiple machines with this technique.

Adlink Ampere Developer Platform

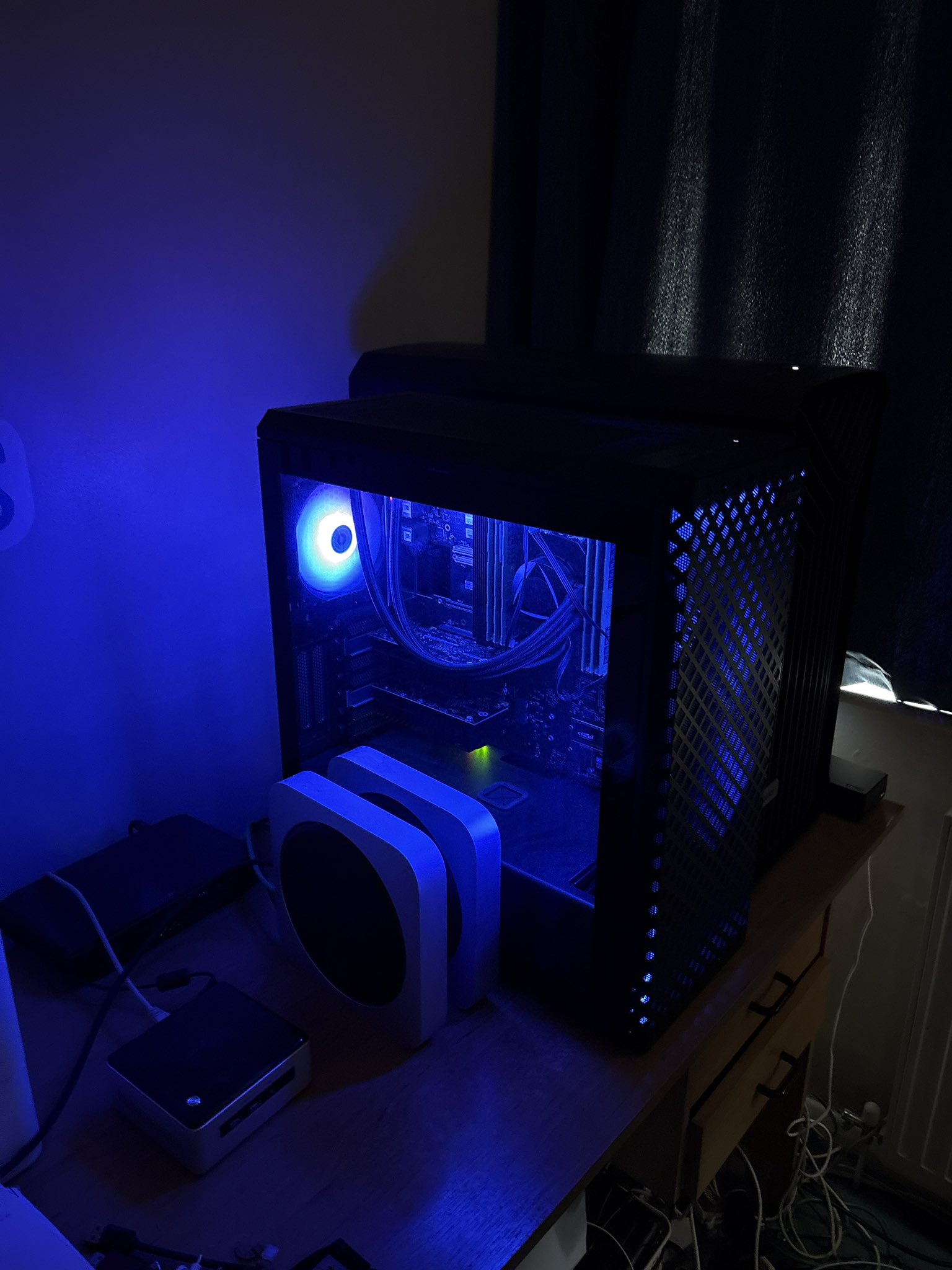

If I need a very large Kubernetes cluster I'll often run the control-plane on an x86_64 Ryzen 9 7900X machine, and the worker nodes on an Arm64 Ampere Altra machine like the Adlink AADP pictured above. The machine above has 96 Arm cores and 196GB RAM.

Install Slicer on each machine

First, install Slicer on each machine, following the installation instructions.

For storage, we'll use the image setting, however if you're going to create many nodes, consider using ZFS for an instant clone of the VM filesystem, and reduced disk space consumption through ZFS's snapshots and Copy On Write (CoW) feature.

Create a YAML file for each machine

You need to dedicate one subnet per machine, so that there are no IP address conflicts.

Then, you should ideally change the name: prefix of the host group, so that the machines have unique names.

The first machine could use:

config:
  host_groups:
  - name: k3s-a
    storage: image
    storage_size: 25G
    count: 3
    vcpu: 2
    ram_gb: 4
    network:
      bridge: brk3s0
      tap_prefix: k3stap
      gateway: 192.168.137.1/24

  github_user: alexellis

  api:
    port: 8080
    bind_address: "127.0.0.1:"

  kernel_image: "ghcr.io/openfaasltd/actuated-kernel:5.10.240-x86_64-latest"
  image: "ghcr.io/openfaasltd/slicer-systemd:5.10.240-x86_64-latest"

  hypervisor: firecracker

Then the second would have a different name: prefix, and a different network section.

config:
  host_groups:
  - name: k3s-b
    network:
      bridge: brk3s0
      tap_prefix: k3stap
      gateway: 192.168.138.1/24

(Note the above is a partial snippet to show the differences only.)

Start Slicer on each machine

On each respective machine run:

sudo -E slicer up ./k3s-a.yaml

sudo -E slicer up ./k3s-b.yaml

Enable routing between the machines and VMs

Now, you need to be careful here.

Copy and paste the routing commands printed upon start-up.

  1. On machine A, run the command from machine B
  2. On machine B, run the command from machine A
  3. On your workstation, which needs to access all of the VMs, run both commands

Install Kubernetes with K3sup Pro

On each host run the following:

curl -SLsf http://127.0.0.1:8080/nodes > devices-a.json

curl -SLsf http://127.0.0.1:8080/nodes > devices-b.json

If you enabled authentication for the API, include the -H "Authorization Bearer TOKEN" header as printed out when Slicer started up.

Copy the two JSON files to your own workstation.

Switch over to a terminal on your own workstation.

K3sup Pro can support multiple devices.json files, the first file will be taken for the servers, the rest will be used as agents and installed in parallel.

PRO=1 curl -sSL https://get.k3sup.dev | sudo sh

k3sup-pro plan --user ubuntu \
  --devices ./devices-a.json \
  --devices ./devices-b.json \
  --servers 3 \
  --traefik=false

After the plan.yaml file is generated, you can run k3sup-pro apply to setup the cluster.

k3sup-pro apply

After a few moments, you can get the KUBECONFIG and merge it into your existing kubeconfig file:

mkdir -p ~/.kube
cp ~/.kube/config ~/.kube/config.bak || true

k3sup-pro get-config \
    --local-path ~/.kube/config \
    --merge \
    --context slicer-multi

Then you can run kubectx slicer-multi to switch to your new cluster and explore it with kubectl.

If your two machines were different kinds of architecture, explore the labels applied with:

kubectl get nodes --show-labels

Then you can deploy a Pod with a nodeSelector, or affinity/anti-affinity rule to control where your workloads run.

For a number of quick Kubernetes applications to try out, see arkade install --help.

The OpenFaaS CE app is quick to install and has a number of samples you can play with.
